SSMA Female / Jack Bulkhead Mount RF Coaxi Microstrip Connector , Screw 10-36UNS-2

Brand Name : ELT

Model Number : SSMA-KYD2

Certification : ISO9001, IS014001

Place of Origin : Xi'an, China

MOQ : MOQ 50 for new production

Price : The more quantity, the cheaper the price will be

Payment Terms : T/T,L/C,D/P

Supply Ability : As requirements

Delivery Time : 5-10 working days for stocked quantity

Packaging Details : 1pcs/plastic bag;100pcs/carton

Product Name : SSMA Female Microstrip Connector

Model : SSMA-KYD2

Frequency Range : 0.3MHz-18GHz

Impedance : 50Ω

Rated Voltage : 250v

DWV : 750V

Insulation Resistance : ≥5000MΩ

Center Conductor : Copper Alloy, Gold Plated

Outer Conductor : Copper Alloy, Gold Plated

Mount Method : Bulkhead

Insulators : PTFE

Screw : 10-36UNS-2

Contact Now

4 Hole Flange Mount SSMA / Mini SMA RF Coax Connector Microstrip with Solder Cup Up to 18GHz with Insulation Convex Surface
Product Specifications
Items Value
Product Name SSMA Female Microstrip Connector
Model SSMA-KFD14
Frequency Range 0.3MHz-18GHz
Impedance 50Ω
Rated Voltage 250v
DWV 750V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Mount Method 4 Hole Flange Mount
Insulators PTFE
Samples In Stock, Available
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
  • Compact size with wide frequency bandwidth
  • Superior mechanical and electrical performance
  • High reliability in demanding applications
  • Threaded connection (10-36UNF-2)
  • Characteristic impedance of 50Ω
  • Frequency operation up to 30GHz
Interface Dimensions
SSMA Female / Jack Bulkhead Mount RF Coaxi Microstrip Connector , Screw 10-36UNS-2
SSMA 4 Hole Flange Mount RF Coaxi Connector Microstrip with Solder Cup Dimensions

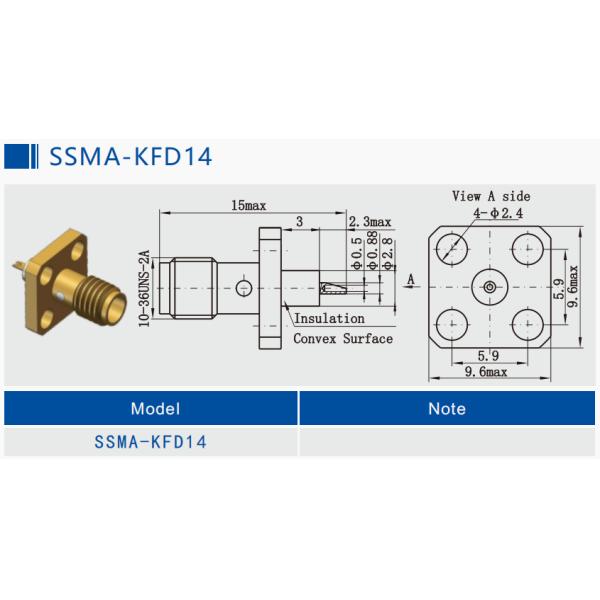

Outline dimensions for the SSMA-KFD14 model (Unit: mm).

SSMA Female / Jack Bulkhead Mount RF Coaxi Microstrip Connector , Screw 10-36UNS-2

Other Model with Solder Cup

SSMA 4 Hole Flange Mount RF Coaxial Connector Microstrip with Solder Cup Dimensions

SSMA Female / Jack Bulkhead Mount RF Coaxi Microstrip Connector , Screw 10-36UNS-2

SSMA 2 Hole Flange Mount RF Coaxial Connector Microstrip with Solder Cup Dimensions

SSMA Female / Jack Bulkhead Mount RF Coaxi Microstrip Connector , Screw 10-36UNS-2

Note: The Microstrip with solder cup.

Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
SSMA Female / Jack Bulkhead Mount RF Coaxi Microstrip Connector , Screw 10-36UNS-2
Packaging & Shipping
Packaging: Each SSMA flange mount connector is carefully packaged in protective cartons to ensure safe transit. SSMA Female / Jack Bulkhead Mount RF Coaxi Microstrip Connector , Screw 10-36UNS-2 Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
